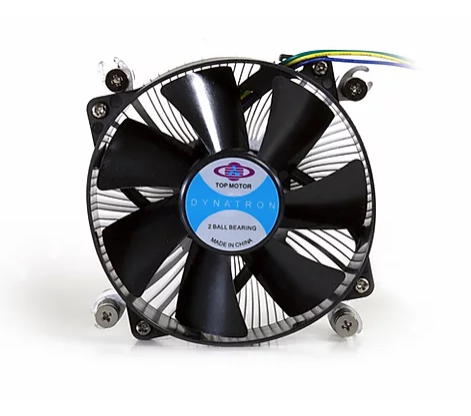

Description
| CPU Socket | LGA1155/1156/1200 |
|---|---|
| CPU Support | Intel |
| Solution | 1.5U Server, mini-ITX |
| Dimensions | 92.0×92.0 x 41.0 mm |
| Weight | 200g ± 5g |
| Material | Aluminum Extruded Radial Fin |
| Fan Dimension | 92 x 92 x 25 mm |
| Speed | At Duty Cycle 0~20%: 1000 RPM At Duty Cycle 50%: 1400 RPM At Duty Cycle 100%: 2500 RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power | At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 1.08 W At Duty Cycle 100%: 3.6 W |
| Air Flow | At Duty Cycle 0~20%: 14.98 CFM At Duty Cycle 50%: 29.90 CFM At Duty Cycle 100%: 46.96 CFM |
| Noise Level | At Duty Cycle 0~20%: 14.70 dBA At Duty Cycle 50%: 18.50 dBA At Duty Cycle 100%: 29.85 dBA |
| Air Pressure | t Duty Cycle 0~20%: 0.29 mm-H2O At Duty Cycle 50%: 1.07 mm-H2O At Duty Cycle 100%: 2.98 mm-H2O |
| Lead Wire Pin Out | Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
