Description

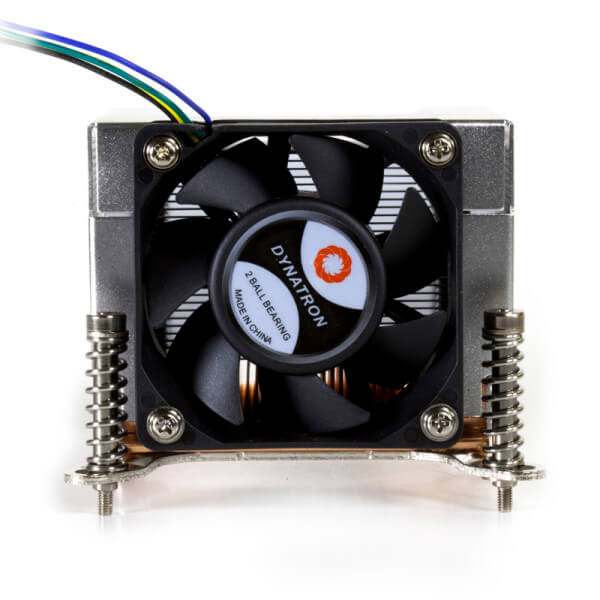

K666 -60 x 60 x 25mm fan with PWM function, Copper Base & Aluminum Fins with Heat pipes embedded for 2U & Up server solution
Features
 |
 |
 |
 |
| 95 Watts | 60x60x25 mm PWM | LGA1151/1155/1156 | Heat Pipes Embedded |
Additional Information
| CPU Support | Intel |
|---|---|
| CPU Socket | LGA 1151, LGA 1155, LGA 1156 |
| Weight | 500 g |
| Material | Copper Base & Aluminum Fins with Heatpipes |
| Solution | 2U Server and Up |
| Dimensions | 90.7 x 85.0 x 64.0 mm |
| Fan Dimension | 60 x 60 x 25 mm |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Speed | t Duty Cycle 20%: 1600 RPM At Duty Cycle 50%: 2300 RPM At Duty Cycle 100%: 5000 RPM |
| Power | t Duty Cycle 20%: 0.72 W At Duty Cycle 50%: 1.2 W At Duty Cycle 100%: 3.0 W |
| Air Flow | t Duty Cycle 20%: 8.5 CFM At Duty Cycle 50%: 12.2 CFM At Duty Cycle 100%: 26.45 CFM |
| Air Pressure | At Duty Cycle 20%: 0.75 mm-H2O At Duty Cycle 50%: 1.55 mm-H2O At Duty Cycle 100%: 7.32 mm-H2O |
| Lead Wir Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
