Description

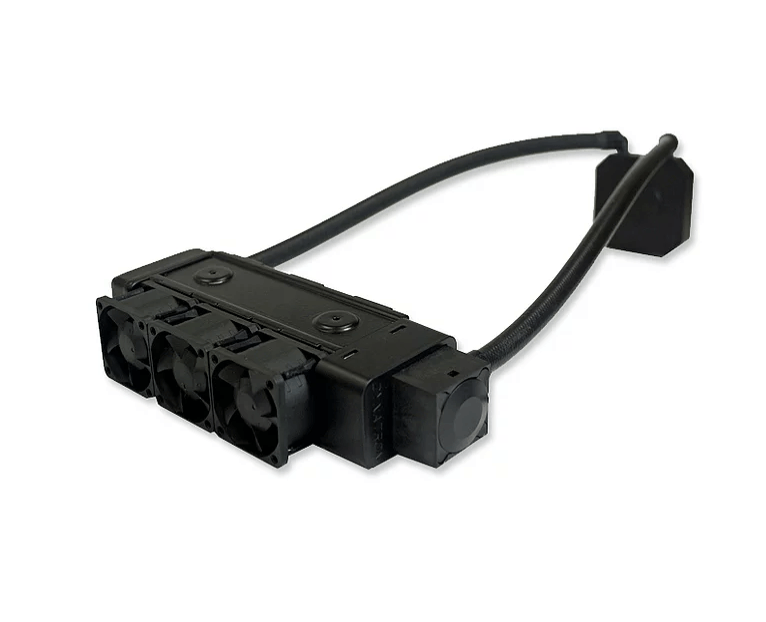

Expect Maximum Performance and High Efficiency from Dynatron’s L3 All-in-one Enclosed 1U Server Liquid Cooler. Saving Power and Reducing Noise. Three 40x40x28mm PWM fans with maximum 12000rpm fan speed. Support CPU TDP up to 260 Watts and above. Compatible with both Intel and AMD CPUs.
| CPU Support | Intel/AMD |
|---|---|
| CPU Socket | Multi-Socket: Intel Socket LGA2011/1151/1155/1156/1366 & AMD AM2/AM2+/AM3/AM3+/FM1/FM2 |
| Solution | 1U Server |
| Fan Dimension | 40 x 40 x 28 mm |
| Speed | At Duty Cycle 20%: 4800 RPM At Duty Cycle 50%: 7800 RPM At Duty Cycle 100%: 12000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 2.4 W At Duty Cycle 50%: 4.5 W At Duty Cycle 100%: 8.4 W |
| Noise Level | At Duty Cycle 20%: 30.30 dBA At Duty Cycle 50%: 43.65 dBA At Duty Cycle 100%: 52.80 dBA |
| Air Flow | At Duty Cycle 20%: 9.20 CFM At Duty Cycle 50%: 15.52 CFM At Duty Cycle 100%: 24.84 CFM |
| Air Pressure | At Duty Cycle 20%: 4.025 mm-H2O At Duty Cycle 50%: 11.95 mm-H2O At Duty Cycle 100%: 32.01 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Water Pump | Stand-alone Water Pump with Powerful Flow Rate 0.84 Litter Per Minute |

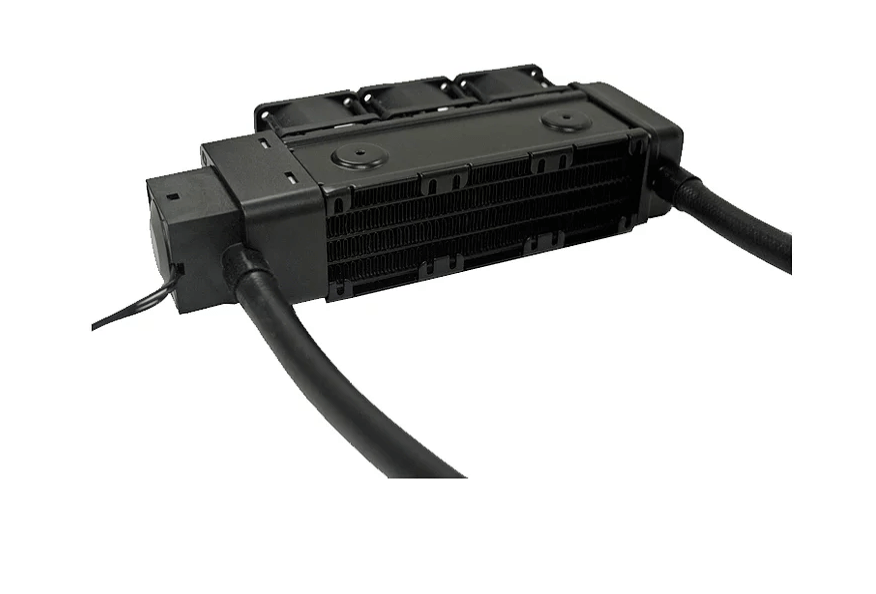

| Radiator | Space Saver Light Weight Radiator |

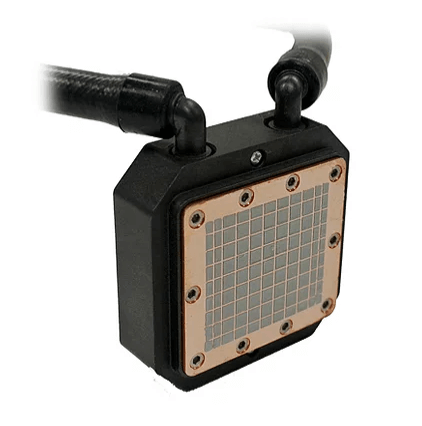

| Cold Plate | Cold Plate Module with Copper Base |
