Welcome to the Widen Electronic Solutions Ltd Dynatron Shop.

Dynatron excels in manufacturing both AC and DC fans from 25mm to 200mm. We also provide for OEM customers any custom-design thermal solution products. These include active coolers, passive heat sinks, heat pipes, blowers, crossflow blowers, Liquid coolers and many more. Our branded thermal solutions are widely recognized and integrated into desktop PCs, servers, workstations, notebooks, gaming machines, and storage systems. In the year 2001, Dynatron won its reputation as the first company to integrate the state of the art MicroFin Technology into a PC heat sink. Today, MicroFin Technology is considered the most advanced and efficient heat sink manufacturing method for a thermal solution and is used in most system applications.

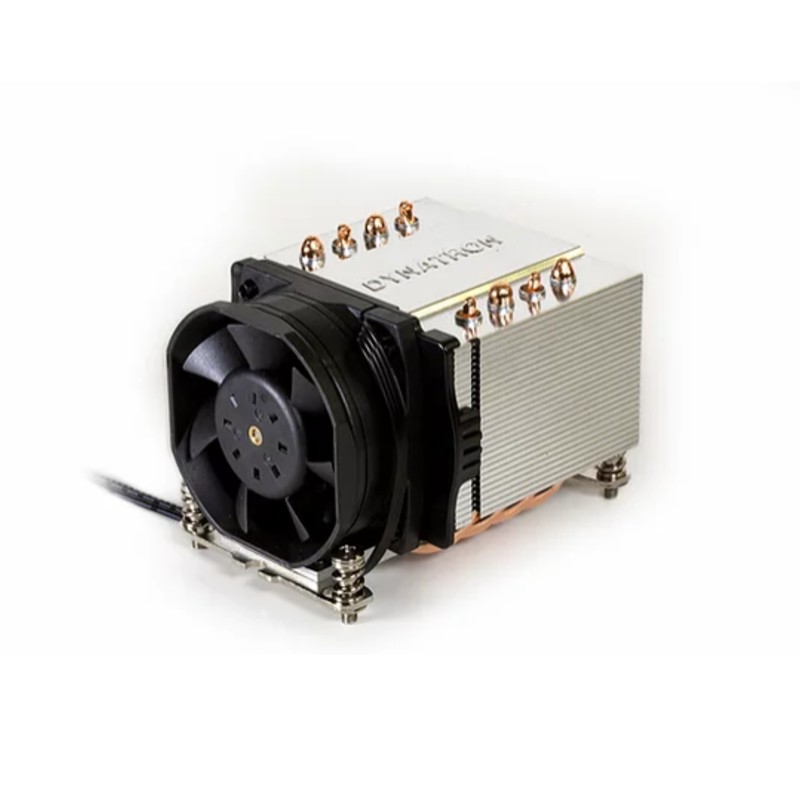

Dynatron A24


Recommend for AMD® Ryzen Processor, Socket AM4, 60x60x28mm PWM Fan, Aluminum Fins with Heatpipe directly contact CPU, Active Cooler for 2U Server and up, Support CPU power up to 165 Watts Heat Dissipation.

Out of stock

Categories: , ,


CPU Support AMD® Ryzen
CPU Socket AM4
Solution 2U Server and Up
Dimensions 107 x 78 x 67 mm
Weight 400 g
Material Aluminum Stacked Fin with Heat Pipes directly contact CPU
Fan Dimension 60 x 60 x 28 mm
Speed At Duty Cycle 20%: 1500±10% RPM
At Duty Cycle 50%: 3500±10% RPM
At Duty Cycle 100%: 7000 RPM
Bearing Double-Ball
Rated Voltage 12V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
AIr Flow At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
