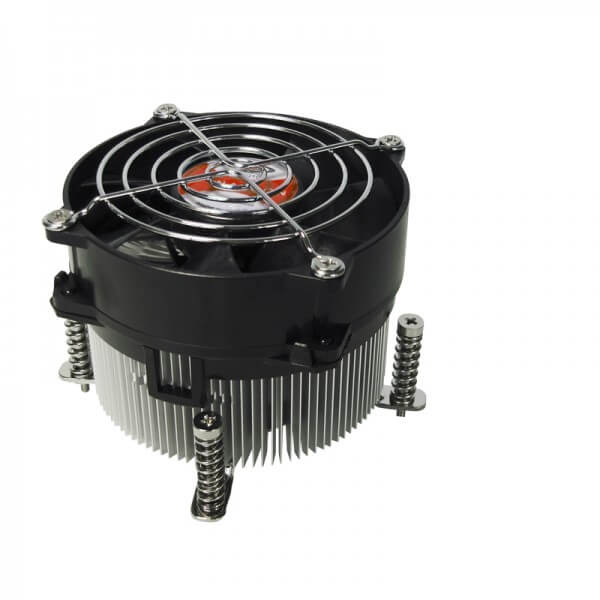

Dynatron K987

£24.48

Cooler to suit Socket 775/1366/1156 3u & up

Out of stock

Categories: , ,

Description

Product Description

Intel Multi-Socket 92×25 mm Fan with PWM Function. Aluminum Radial Fin Heatsink with Copper Inserted. Desktop, 3U&Up Server up to CPU Power 95 Watts.

*** All product specifications and product images are subject to change without notice.

Features

95 Watts 92×25 mm PWM LGA1151/1155/1156/1366/775 Copper Inserted

Additional Information

CPU Support Intel
CPU Socket Multi-Socket LGA 1151/1155/1156/1366/775
Solution 3U Server and Up
Dimensions 106.0 x 106.0 x 72.6 mm
Weight 500 g
Material Aluminum Extruded Radial Heatsink with Copper Core
Fan Dimension 92 x 25 mm
Speed At Duty Cycle 0~20%: 1200 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 2800 RPM
Power At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 3.6 W
Air Flow At Duty Cycle 0~20%: 21.43 CFM
At Duty Cycle 50%: 26.79 CFM
At Duty Cycle 100%: 49.99 CFM
Bearing Ball Bearing
Rated Voltage 12V
Noise Level At Duty Cycle 0~20%: 16.08 dBA
At Duty Cycle 50%: 20.93 dBA
At Duty Cycle 100%: 34.48 dBA
Air Pressure At Duty Cycle 0~20%: 0.686 mm-H2O
At Duty Cycle 50%: 1.07 mm-H2O
At Duty Cycle 100%: 3.74 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
