Dynatron Unit R14


11 in stock

SKU: R14 Categories: ,

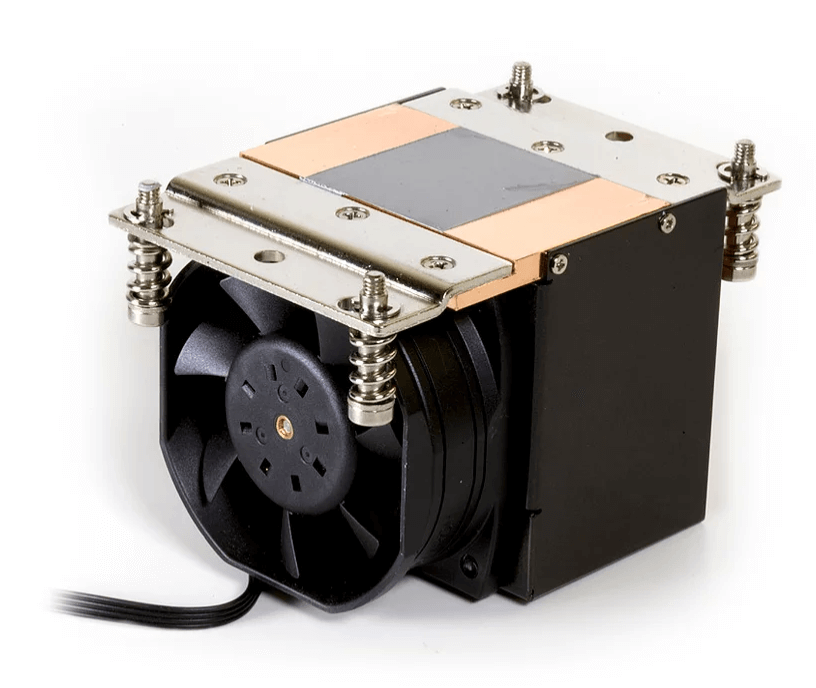

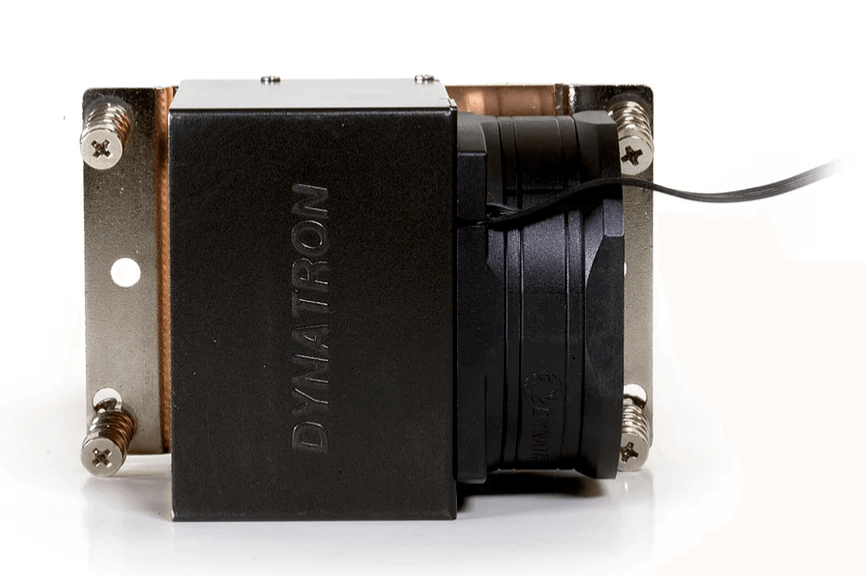

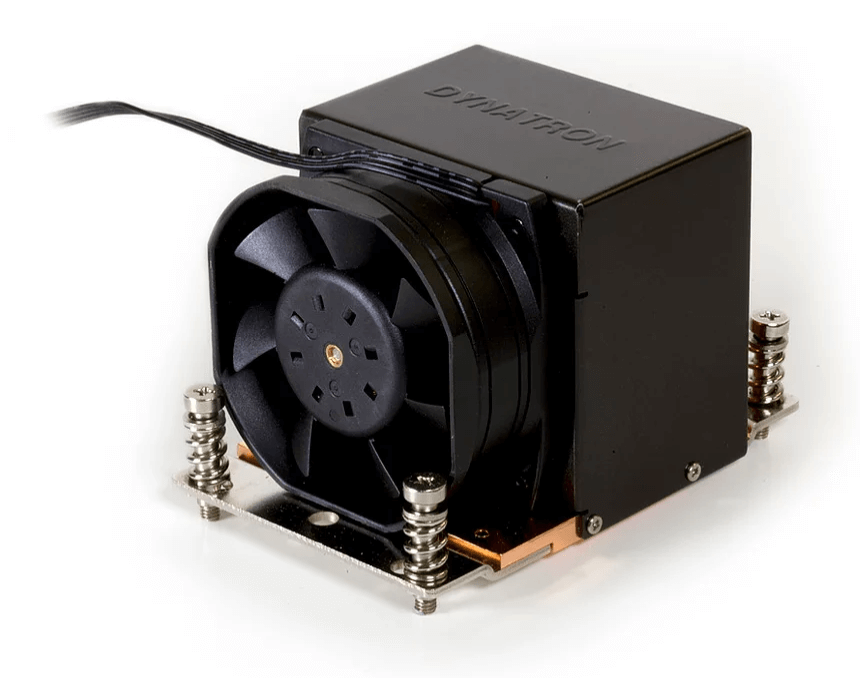

New innovation 60x60x28mm PWM fan, Copper heatsink support up to TDP 150 Watts for 2U Server and up.

CPU Support Intel
CPU Socket LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch)
Solution 2U Server and Up
Dimensions 60.0 x 60.0 x 28.0 mm
Weight 660 g

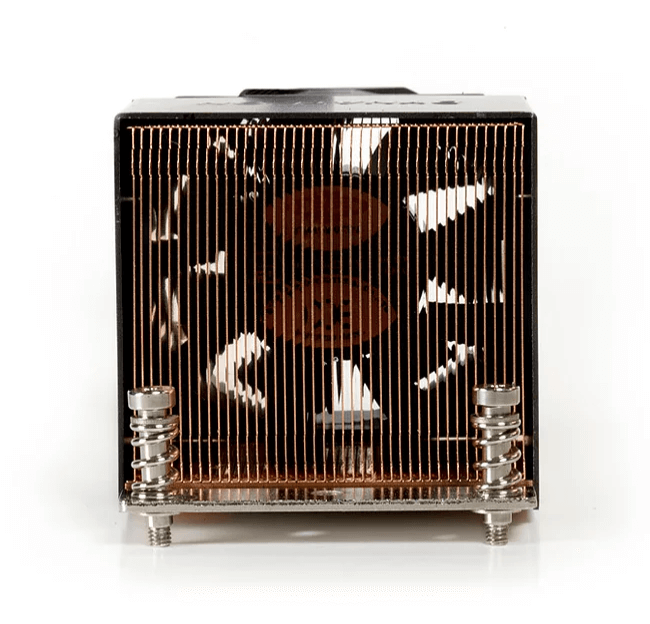

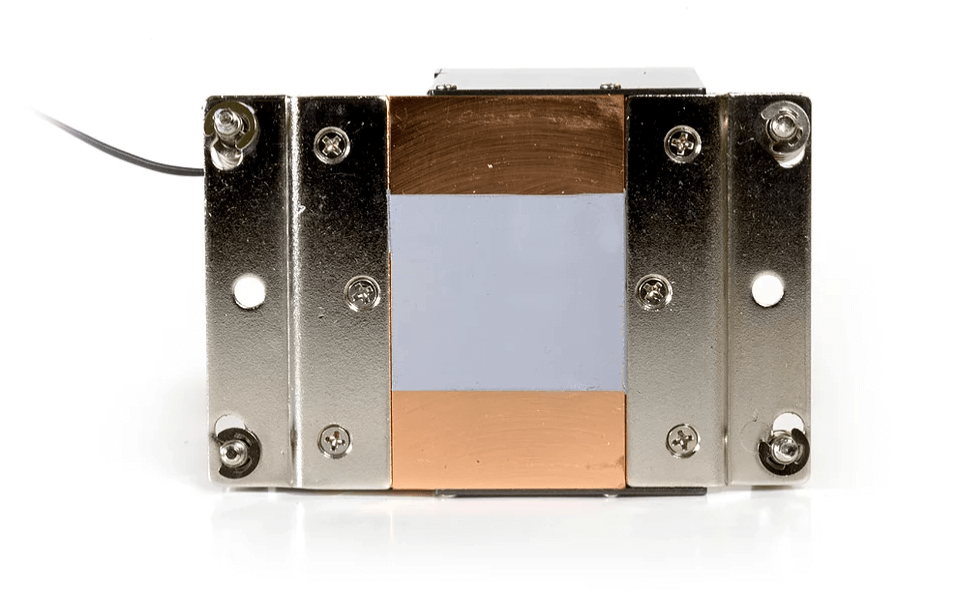

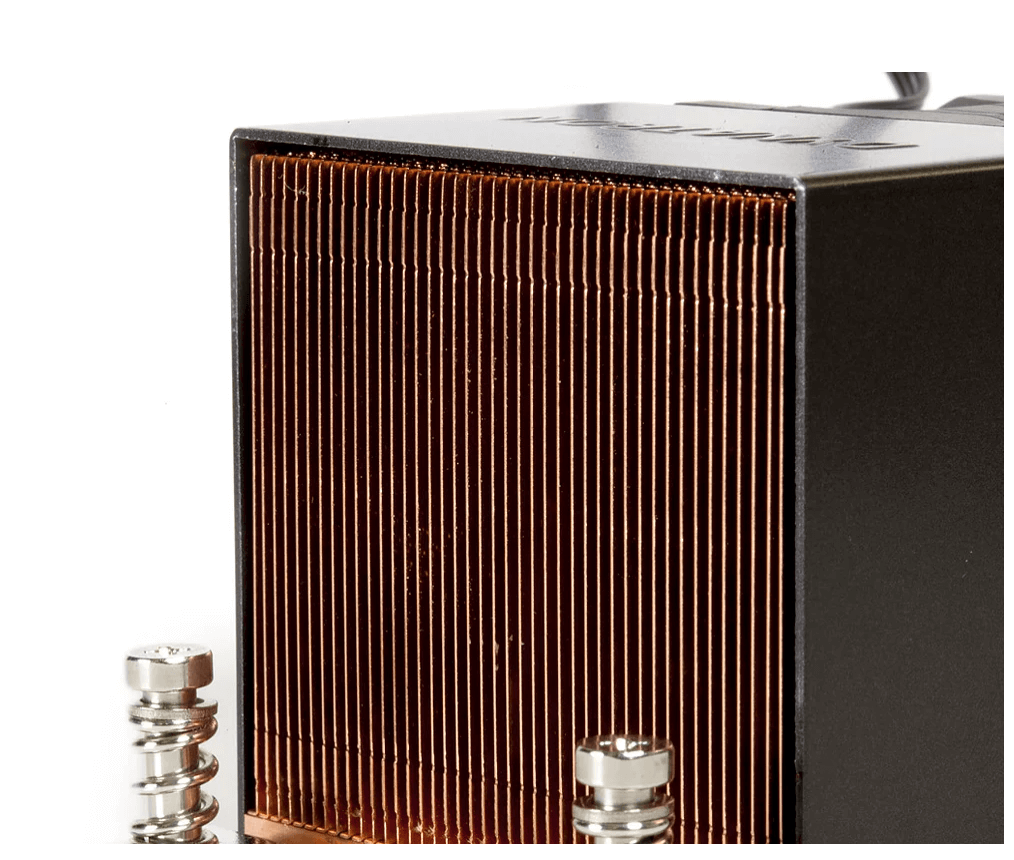

Material Copper Heatsink with Stacked Fins

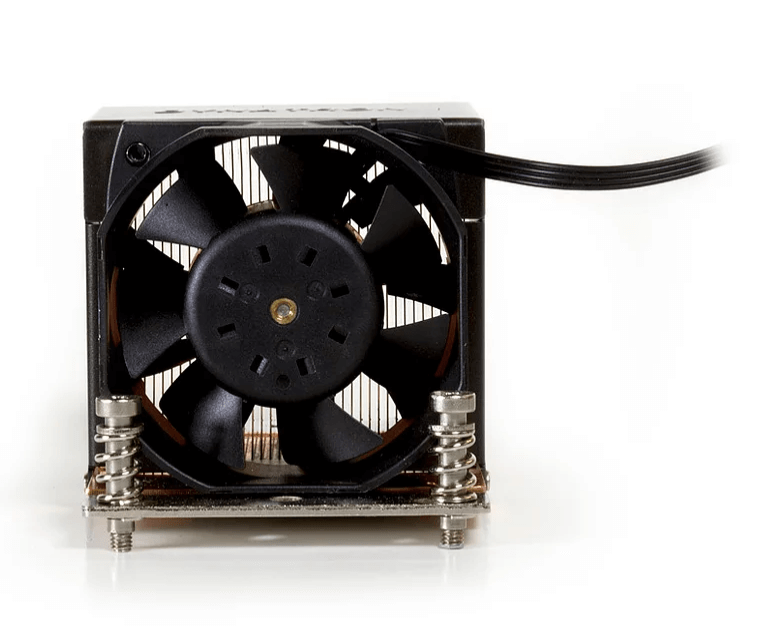

Fan Dimension 60 x 60 x 28 mm
Speed At Duty Cycle 20%: 1500 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
Air Flow At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
