Description

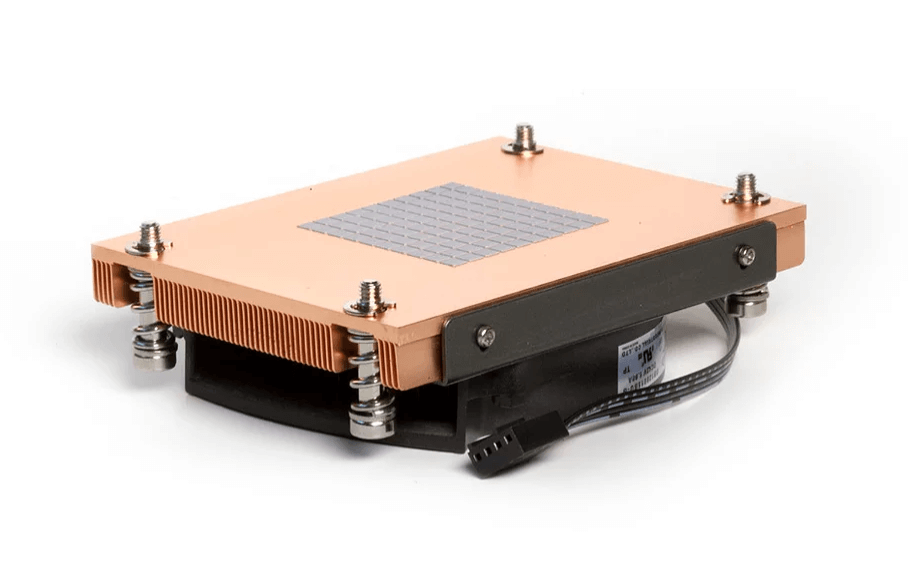

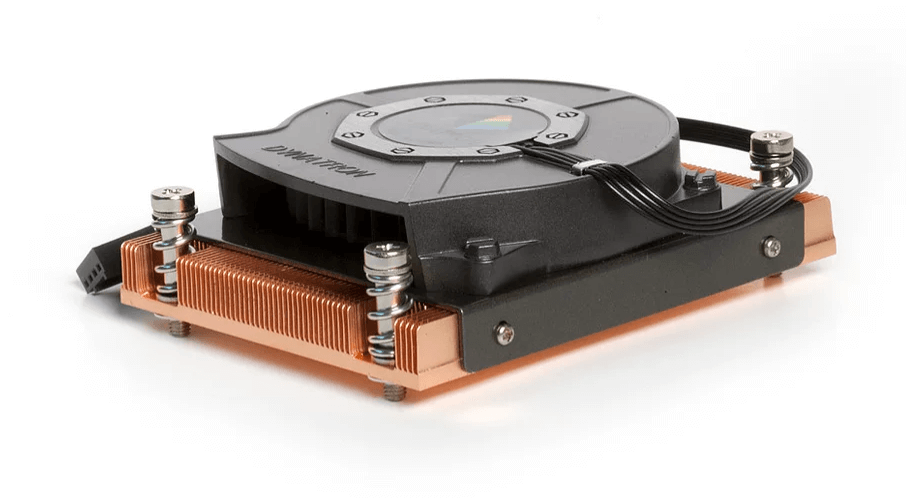

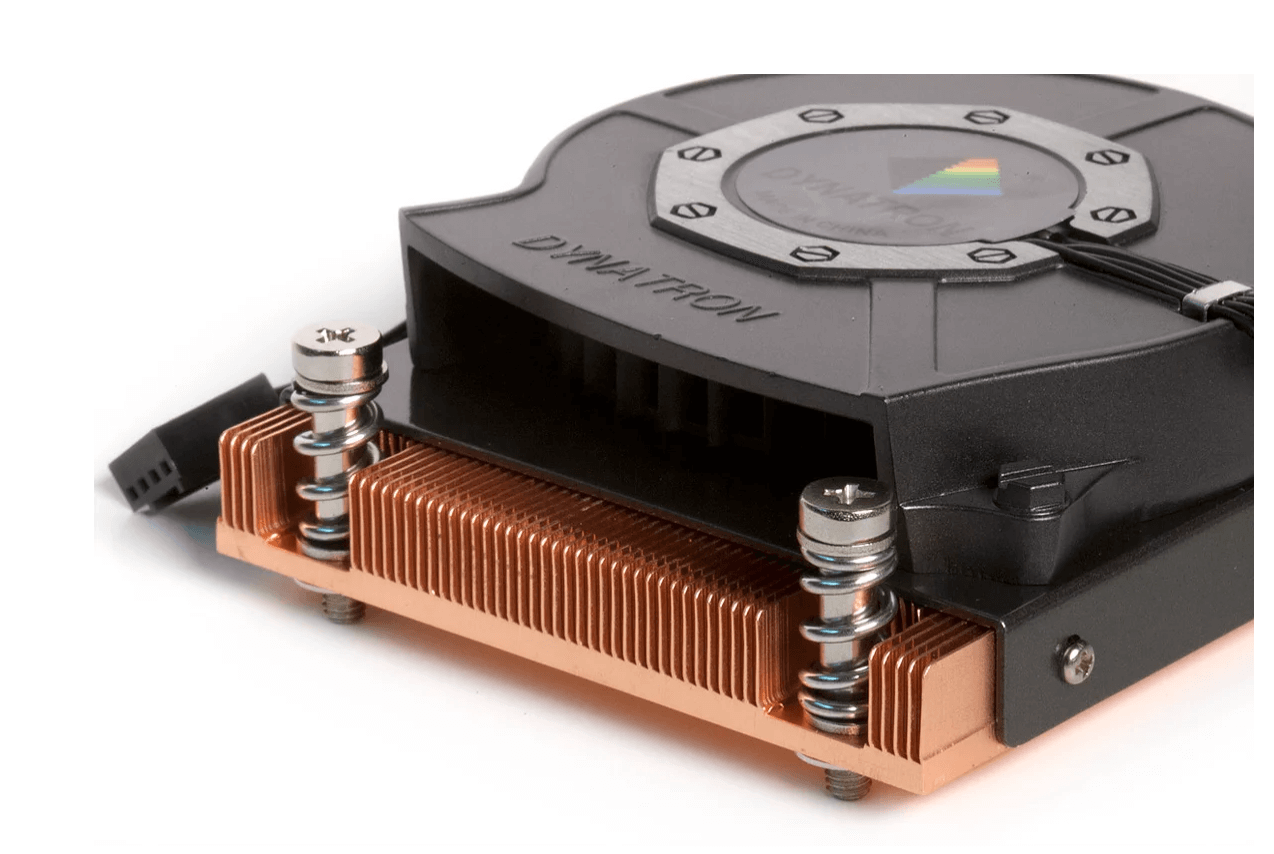

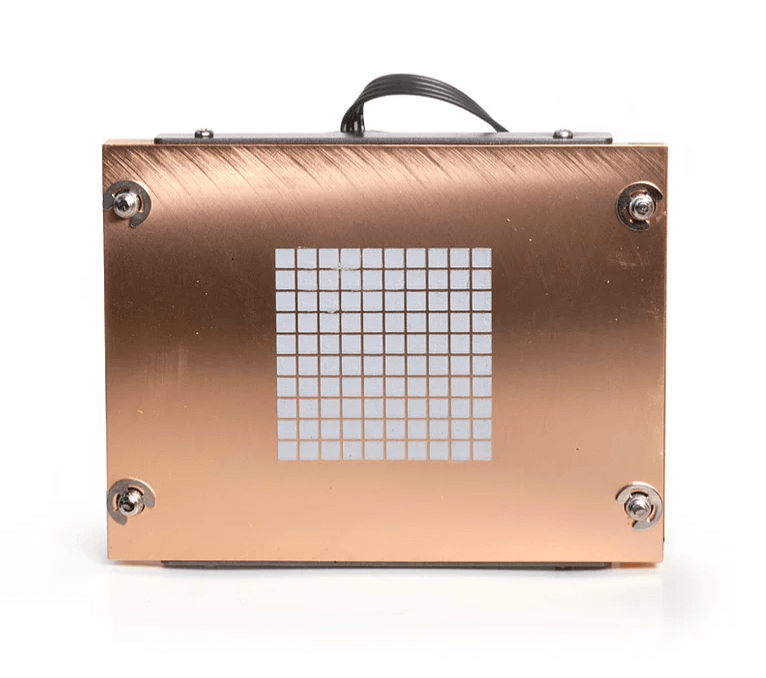

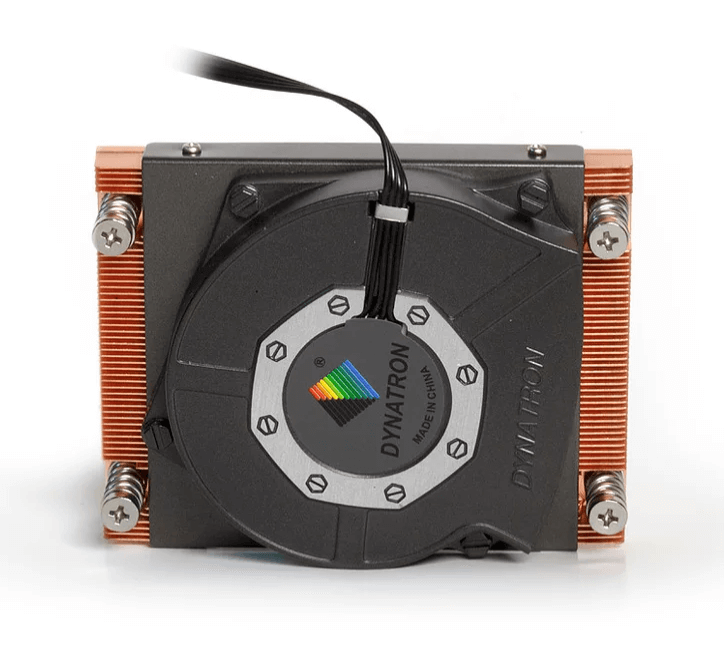

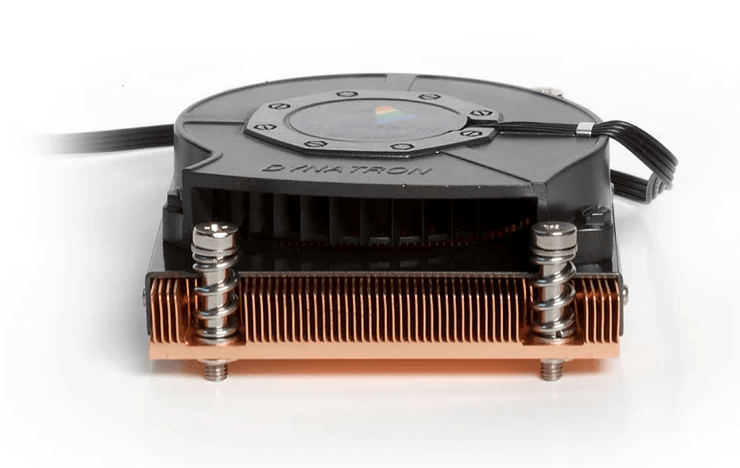

Copper Heatsink with Skiving Fins, Alloy Frame Blower with PWM Function for 1U Server, Support CPU TDP power up to 95 watts.
| CPU Support | Intel |
|---|---|
| CPU Socket | LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Solution | 1U Server |
| Dimensions | 103.0 x 78.0 x 28.0 mm |
| Weight | 470 g |
| Material | Copper Heatsink with Skiving Fins |
| Fan Dimension | 80 x 80 x 15 mm |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W |
| Air Flow | At Duty Cycle 20%: 6.5 CFM At Duty Cycle 50%: 11.2 CFM At Duty Cycle 100%: 22.28 CFM |
| Noise Level | At Duty Cycle 20%: 21.5 dBA At Duty Cycle 50%: 43.0 dBA At Duty Cycle 100%: 59.14 dBA |
| Air Pressure | At Duty Cycle 20%: 2.27 mm-H2O At Duty Cycle 50%: 18.56 mm-H2O At Duty Cycle 100%: 74.18 mm-H2O |
