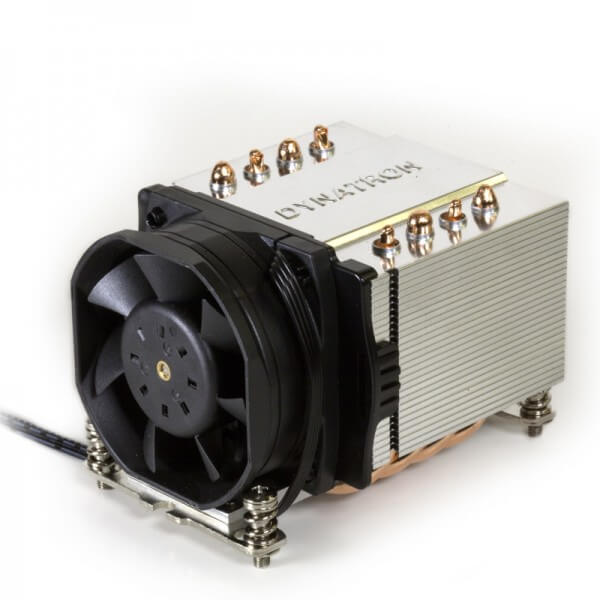

Description
New innovation 60x60x28mm PWM fan, Aluminum fins with heat pipe directly contact CPU up to TDP 165 Watts for 2U Server & Up
Features
![]() | ![]() | ![]() | ![]() |
165 Watts | 60x60x28mm PWM | LGA2011 | 6mm Heatpipes |
Dynatron Shop
Welcome to the Widen Electronic Solutions Ltd Dynatron Shop.
Dynatron excels in manufacturing both AC and DC fans from 25mm to 200mm. We also provide for OEM customers any custom-design thermal solution products. These include active coolers, passive heat sinks, heat pipes, blowers, crossflow blowers, Liquid coolers and many more. Our branded thermal solutions are widely recognized and integrated into desktop PCs, servers, workstations, notebooks, gaming machines, and storage systems. In the year 2001, Dynatron won its reputation as the first company to integrate the state of the art MicroFin Technology into a PC heat sink. Today, MicroFin Technology is considered the most advanced and efficient heat sink manufacturing method for a thermal solution and is used in most system applications.
New innovation 60x60x28mm PWM fan, Aluminum fins with heat pipe directly contact CPU up to TDP 165 Watts for 2U Server & Up
![]() | ![]() | ![]() | ![]() |
165 Watts | 60x60x28mm PWM | LGA2011 | 6mm Heatpipes |
CPU Support | Intel |
---|---|
CPU Socket | LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch) |
Solution | 2U Server and Up |
Dimensions | 112.0 x 84.0 x 67.0 mm |
Weight | 400 g |
Material | Aluminum Stacked Fin with Heatpipes Directly Contacting CPU |
Fan Dimension | 60 x 60 x 28 mm |
Speed | At Duty Cycle 20%: 1500 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
Bearing | 2 Ball Bearing |
Rated Voltage | 12V |
Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 2.16 W At Duty Cycle 100%: 7.2 W |
AIr Flow | At Duty Cycle 20%: 8.8 CFM At Duty Cycle 50%: 20.3 CFM At Duty Cycle 100%: 40.5 CFM |
Noise Level | At Duty Cycle 20%: 16.0 dBA At Duty Cycle 50%: 32.9 dBA At Duty Cycle 100%: 47.5 dBA |
Air Pressure | At Duty Cycle 20%: 0.7 mm-H2O At Duty Cycle 50%: 3.6 mm-H2O At Duty Cycle 100%: 14.3 mm-H2O |
Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
