Dynatron B14 Intel FCLGA3647


Out of stock

SKU: B14 Categories: , ,

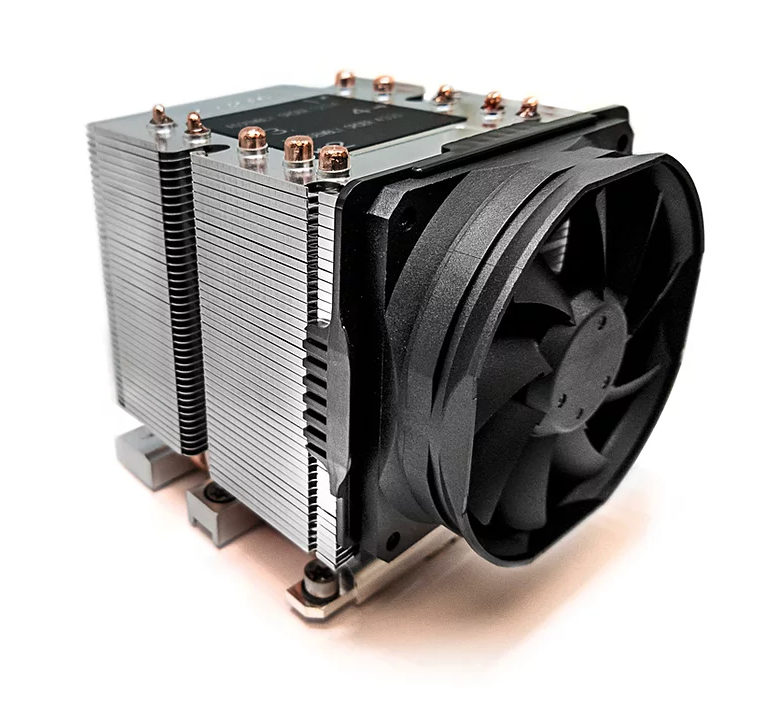

Recommend for Intel® Xeon® Platinum / Gold Family Processor( Products formerly Skylake ), Socket FCLGA3647 Square ILM , 80x80x25mm PWM Fan, Aluminum heatsink with heatpipe embedded for 3U Server up to CPU power 205 Watts.

CPU Support Intel
CPU Socket FCLGA3647 Square ILM
Solution 3U Server and Up
Dimensions 90 x 90 x 110 mm
Weight 600 g
Material Aluminum Heatsink with Heatpipe Embedded
Fan Dimension 80 x 80 x 25 mm
Speed At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2300 ± 10% RPM
At Duty Cycle 100%: 4000 ± 10% RPM
Rated Voltage 12V
Bearing 2 Ball Bearing
Power At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 4.8 W
Air Flow At Duty Cycle 20%: 12.5 CFM
At Duty Cycle 50%: 28.8 CFM
At Duty Cycle 100%: 50.0 CFM
Noise Level At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 30.2 dBA
At Duty Cycle 100%: 42.2 dBA
Air Pressure At Duty Cycle 20%: 0.5 mm-H2O
At Duty Cycle 50%: 2.6 mm-H2O
At Duty Cycle 100%: 7.8 mm-H2O
Lead Wire Pin Out Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

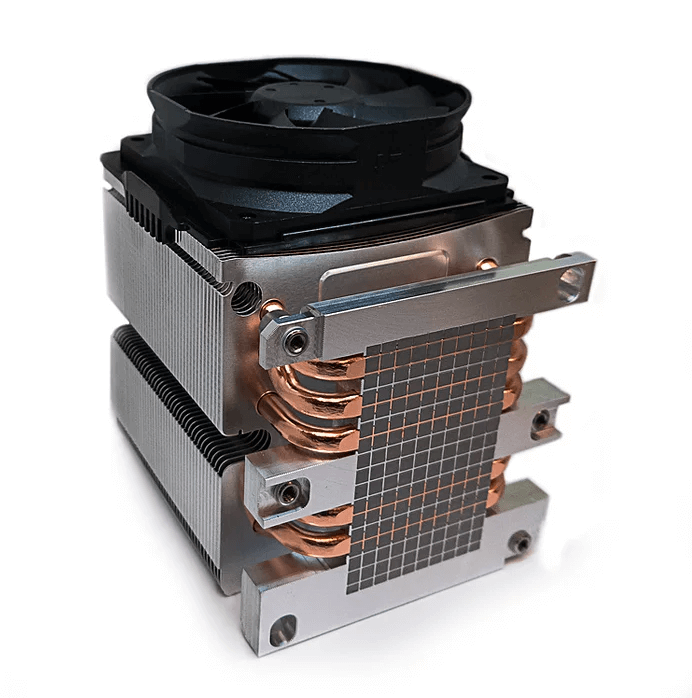

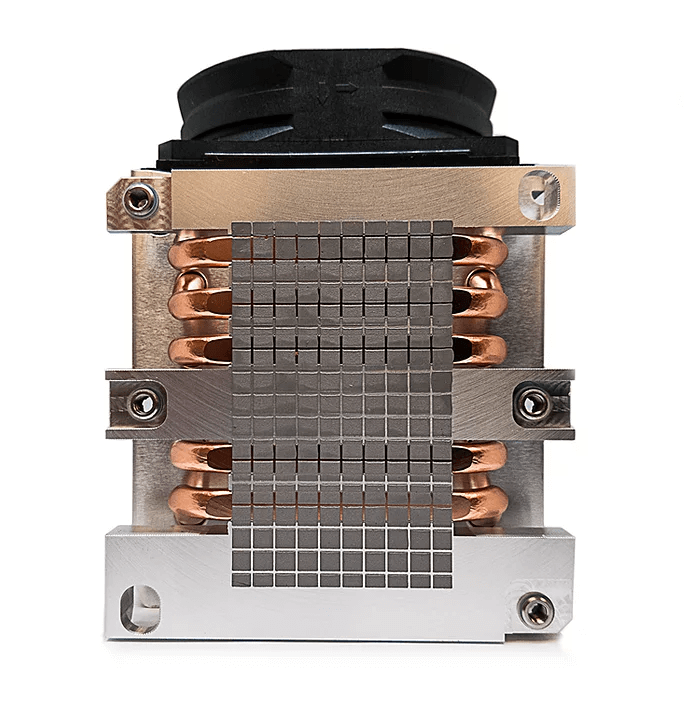

Thermal Grease Shin-Etsu 7762 Pre-printed
