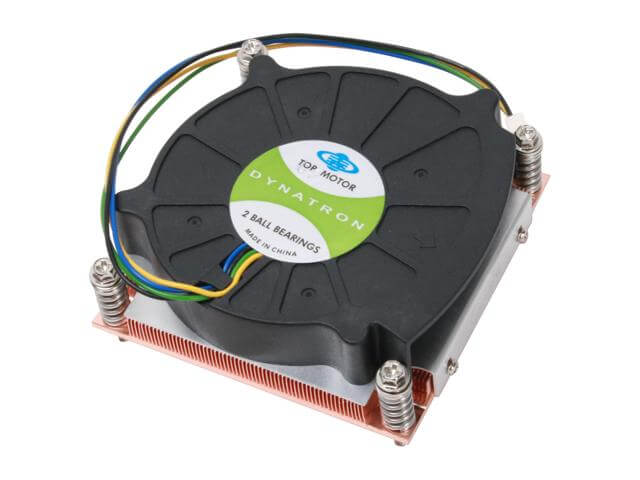

Dynatron P199

Fan & Heatsinks

Fan Size

80mm

Compatibility

Intel Socket 775 Quad Core Q6700 & Q6600, Core 2 Extreme X6800, Core 2 Duo E6850, Pentium Dual-Core E2180, Pentium D 960, Pentium 4 Extreme Edition , Celeron D 365 & Socket 775 Dual-Core Xeon 3000 Sequence for 1U Server

Bearing Type

2 Ball

RPM

At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 5000 RPM

Air Flow

At Duty Cycle 20%: 2.508 CFM
At Duty Cycle 50%: 7.214 CFM
At Duty Cycle 100%: 15.0 CFM

Noise Level

At Duty Cycle 20%: 20.5 dBA
At Duty Cycle 50%: 35.6 dBA
At Duty Cycle 100%: 49.8 dBA

Power Connector

4 Pin

Heatsink Material

Copper

Fan Mounting Types to Heatsink

Vertical

Dimensions & Weight

Fan Dimensions

80 x 80 x 15mm

Heatsink Dimensions

82.6 x 81.0 x 28.5mm

Weight

340 g

Features

Features

RoHS Compliance
Support power up to 130Watts refer to system arrangement
Orientations switchable without board components interference
slim sized Backplate to avoid solder joint impact from all systemboards
