Dynatron Shop

Welcome to the Widen Electronic Solutions Ltd Dynatron Shop.

Dynatron excels in manufacturing both AC and DC fans from 25mm to 200mm. We also provide for OEM customers any custom-design thermal solution products. These include active coolers, passive heat sinks, heat pipes, blowers, crossflow blowers, Liquid coolers and many more. Our branded thermal solutions are widely recognized and integrated into desktop PCs, servers, workstations, notebooks, gaming machines, and storage systems. In the year 2001, Dynatron won its reputation as the first company to integrate the state of the art MicroFin Technology into a PC heat sink. Today, MicroFin Technology is considered the most advanced and efficient heat sink manufacturing method for a thermal solution and is used in most system applications.

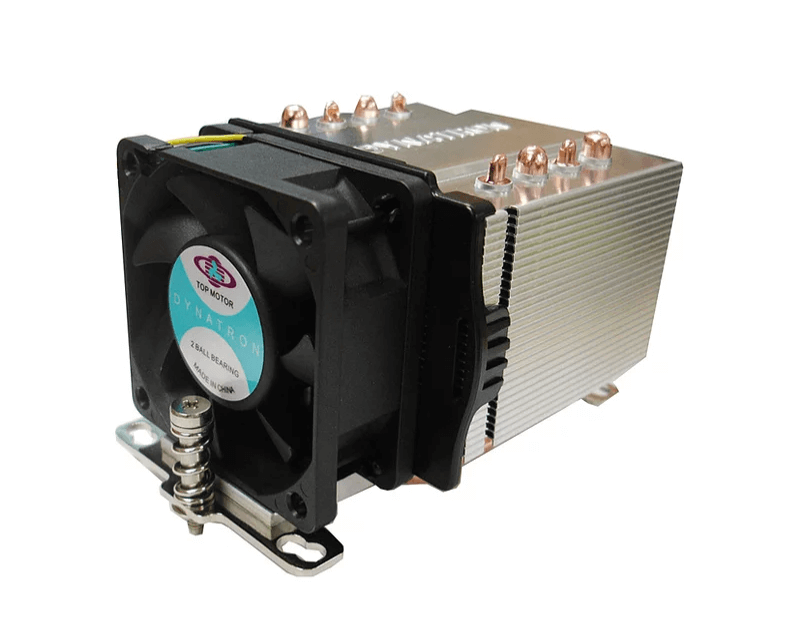

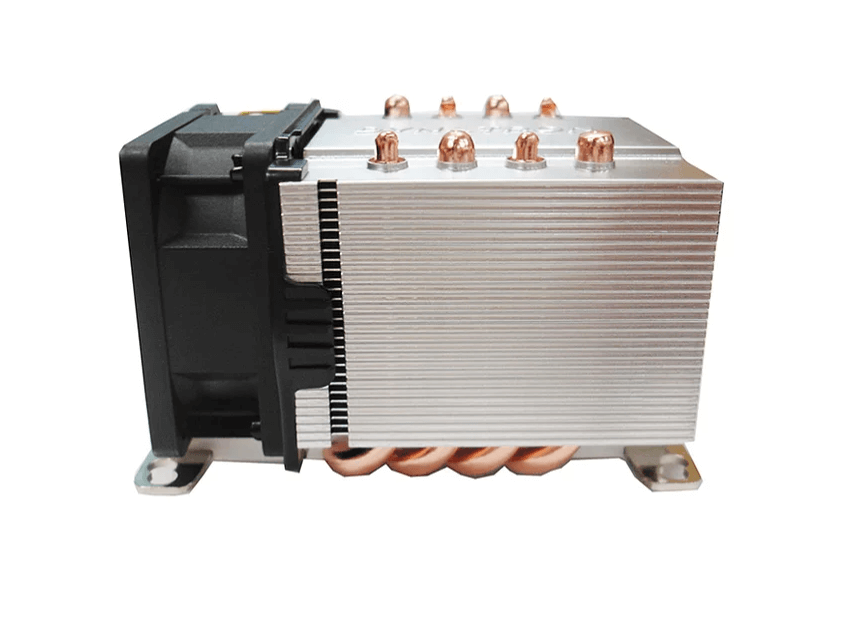

Dynatron A13 Cooler

£22.00

Out of stock

SKU: A13 Categories: , ,

Description

AMD G34 Processor Socket LGA 1974 Side-Blower 60x60x25mm PWM fan Cooler for 2U Server.

CPU Support AMD Intel
CPU Socket LGA1974 G34
Solution 2U Server and Up
Dimensions 112.0 x 84.0 x 67.0 mm
Weight 400g ± 5g
Material Aluminum Stacked Fin with Heat Pipes directly contact CPU
Fan Dimension 60 x 60 x 25 mm
Speed At Duty Cycle 20%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPM
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 1.6 W
At Duty Cycle 100%: 7.2 W
Bearing 2 Ball Bearing
Rated Voltage 12V
Air Flow At Duty Cycle 20%: 8.85 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75 CFM
Noise Level At Duty Cycle 20%: 16.9 dBA
At Duty Cycle 50%: 35.9 dBA
At Duty Cycle 100%: 51.0 dBA
Air Pressure At Duty Cycle 20%: 0.708 mm-H2O
At Duty Cycle 50%: 4.425 mm-H2O
At Duty Cycle 100%: 17.701 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
