Description

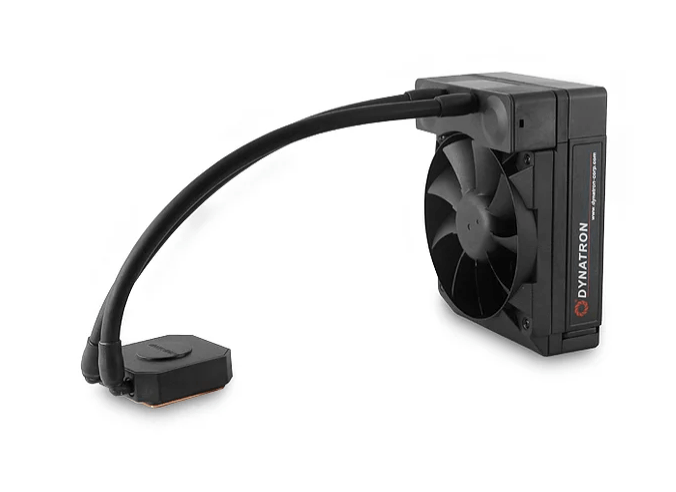

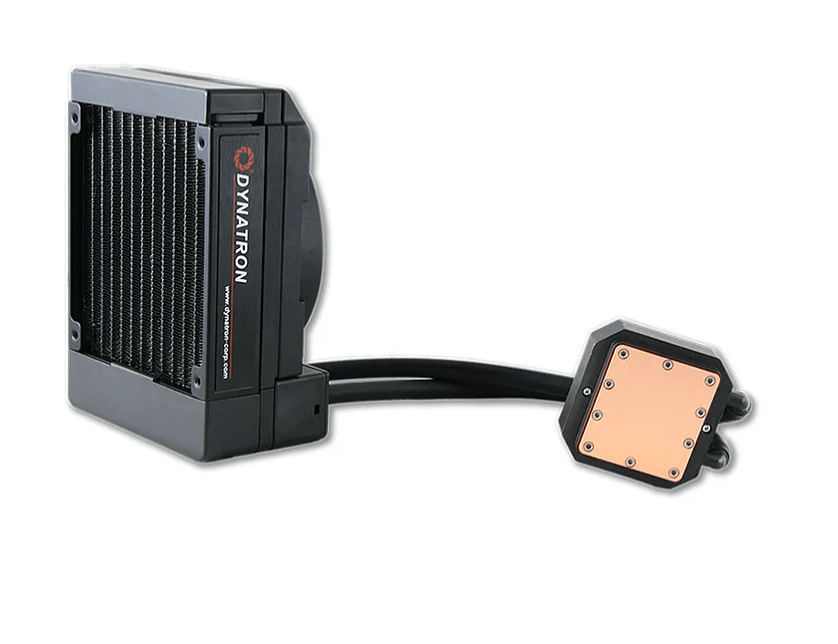

Dynatron’s L5 High Performance Liquid Cooler gives your system the extra capacity for overclocking and stability. This self contained unit is coupled with a powerful pump and integrated blue LED PWM fan to give your system an edge in performance. Variable temperature control ensures optimal cooling even during the most intense computing situations. Stay ahead of the opposition by getting more out of your system. MAX TDP to 260 Watts.
| CPU Support | Intel/AMD |
|---|---|
| CPU Socket | Muti-socket: Intel Socket LGA2066/2011/1151/1155/1156/1366 & AMD AM2/AM2+/AM3/AM3+/FM1/FM2 |
| Solution | Desktop |
| Dimensions | 400.0 x 120.0 x 165.0 mm |
| Weight | 1100 g |
| Material | Aluminum Fins, 4x Heat Pipes with H.C.C. Technology |
| Fan Dimension | 120 x 120 x 38 mm Blue LED PWM |
| Speed | At Duty Cycle 20%: 900 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 2300 RPM |
| Bearing | Liquid State Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.0 W At Duty Cycle 100%: 4.9 W |
| Air Flow | At Duty Cycle 20%: 34.8 CFM At Duty Cycle 50%: 58.0 CFM At Duty Cycle 100%: 88.93 CFM |
| Noise Level | At Duty Cycle 20%: 17.3 dBA At Duty Cycle 50%: 28.4 dBA At Duty Cycle 100%: 37.7 dBA |
| Air Pressure | At Duty Cycle 20%: 0.79 mm-H2O At Duty Cycle 50%: 2.20 mm-H2O At Duty Cycle 100%: 5.17 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Water Pump | Stand-alone Water Pump with Powerful Flow Rate 0.84 Litter Per Minute |
| Radiator Dimension | 152.0 x 120.0 x 27.0 mm |
