Dynatron R16

£34.84

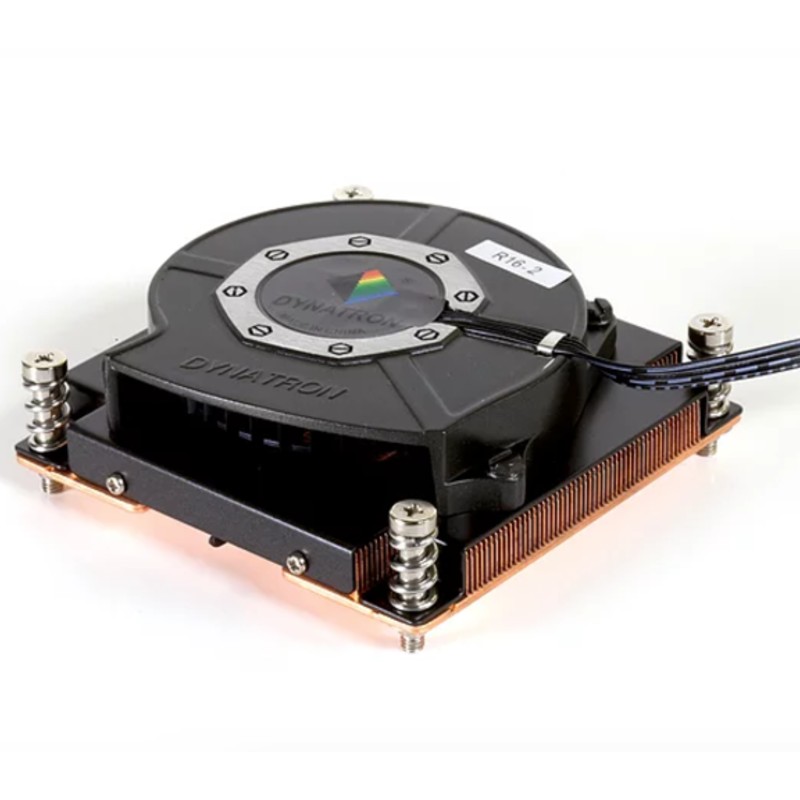

Recommend for Intel® Core™ X-series Processors, Socket FCLGA 2066, Intel® Xeon® Processor, Socket FCLGA 2011 Square ILM, Aluminum 80x80x15mm blower with PWM function, Vapor chamber base with Copper Stacked Fin for 1U Server Solution, Support CPU Power up to 165 Watts Heat Dissipation.

13 in stock

Categories: , ,

Description

Additional Information

CPU Support Intel
CPU Socket LGA 2066/2011 (Square Type, 80mm x 80mm Mounting Pitch)
Solution 1U Server
Dimensions 90.0 x 90.0 x 28.0 mm
Weight 390 g
Material Vapor chamber base with Copper stacked fin
Fan Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W
Air Flow At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM
Noise Level At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA
Air Pressure At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

*All product specifications and product images are subject to change without notice.
