Dynatron K199

£27.95

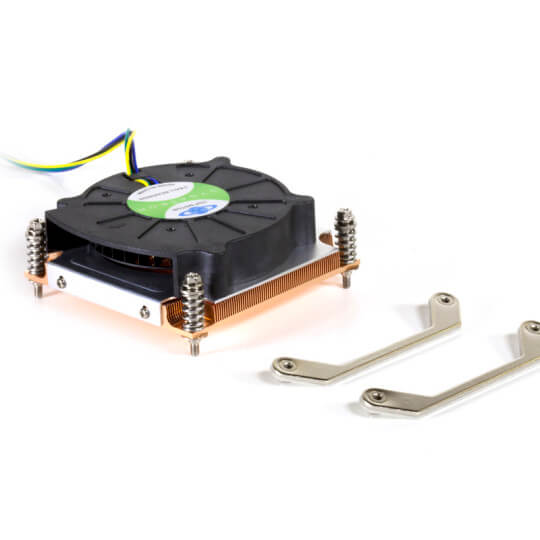

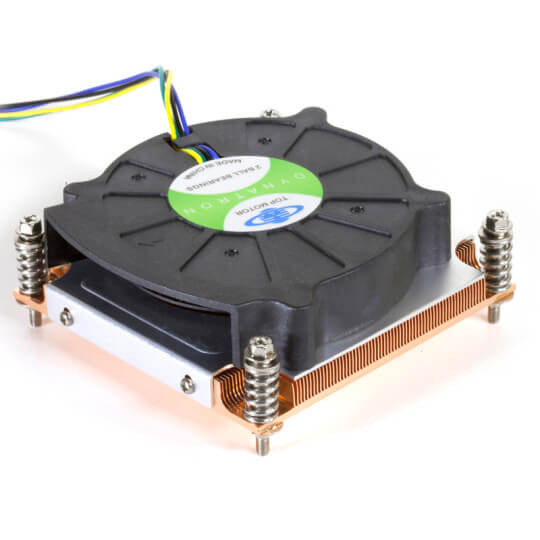

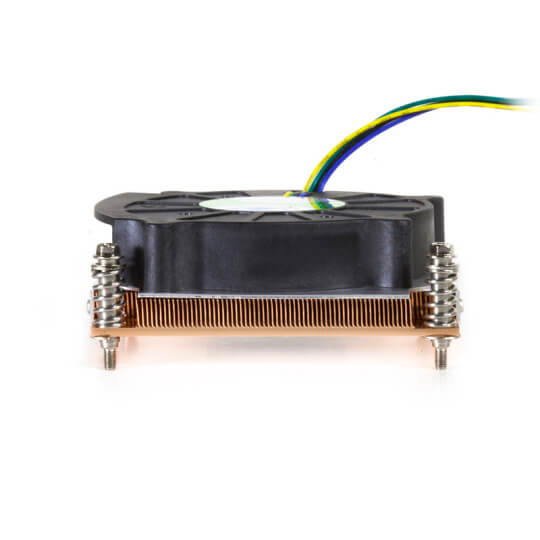

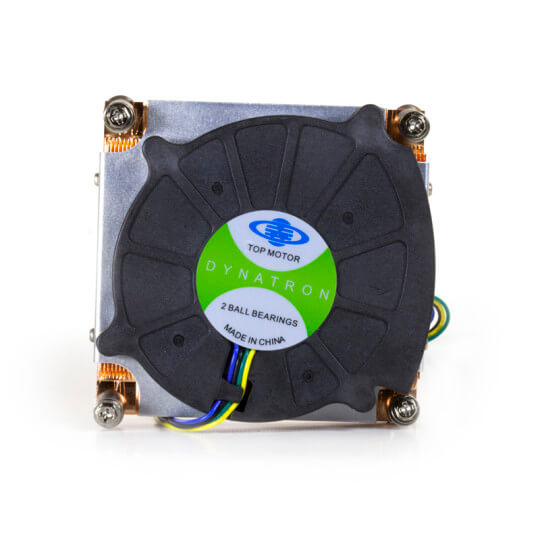

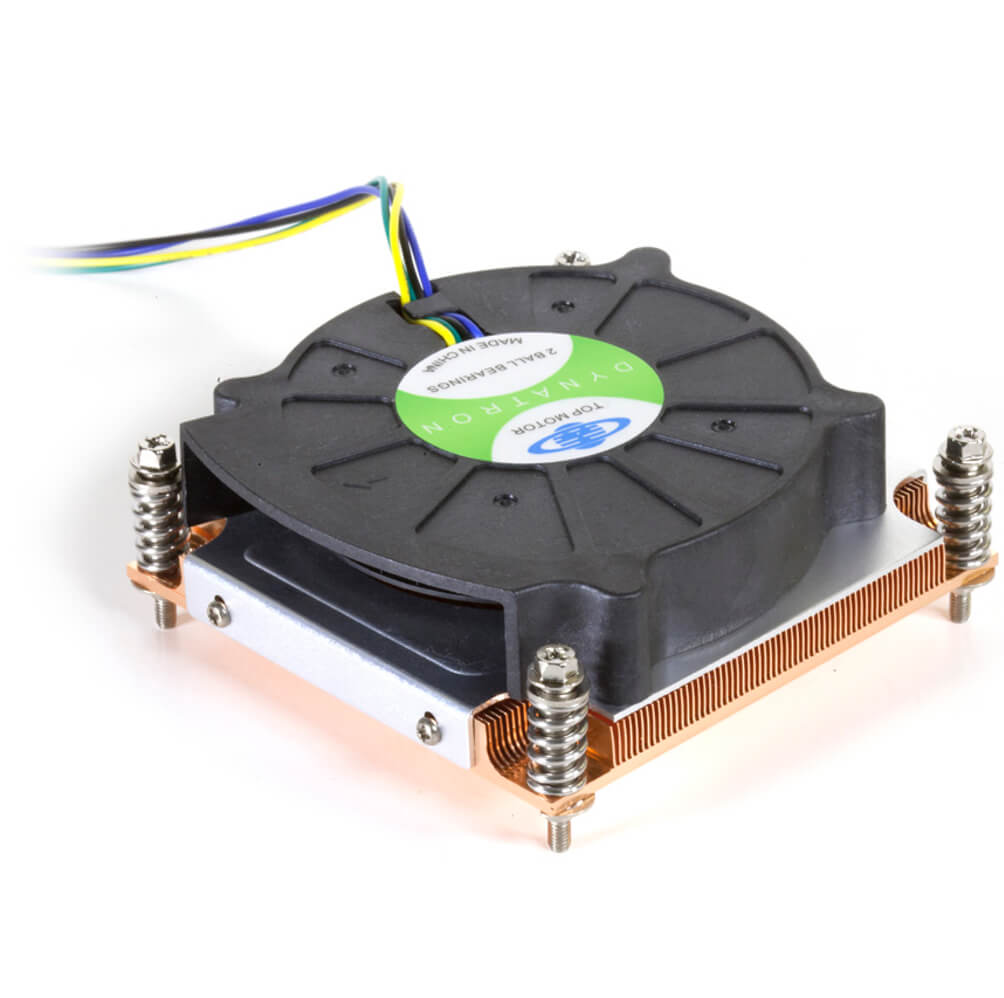

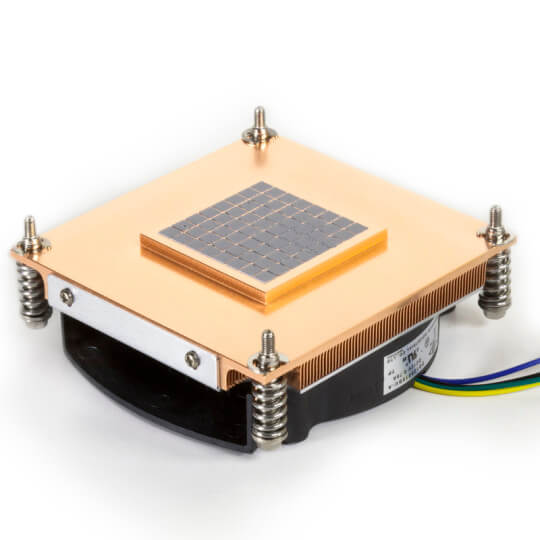

The Dynatron K199 80mm 2 Ball CPU Cooler features a copper base and Heatsink for great cooling performance, and supports a variety of Intel Core & Xeon processors.



Out of stock

Categories: , , ,

Description

80 x 80 x 15mm blower with PWM function, Copper Heatsink up to TDP 95 Watts for 1U server solution*** All product specifications and product images are subject to change without notice.



95 Watts 80x80x15mm PWM Blower LGA1151/1155/1156 Copper Skived Fin

Additional Information

CPU Support Intel
CPU Socket LGA1151 l LGA1155 l LGA1156
Solution 1U Server
Dimensions 85.0 x 81.5 x 28.5 mm
Weight 355 g +/- 5g
Material Copper Heatsink
Fan Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 5000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 9.60 W
Air Flow At Duty Cycle 20%: 5.355 CFM
At Duty Cycle 50%: 7.654CFM
At Duty Cycle 100%: 14.719 CFM
Noise Level At Duty Cycle 20%: 20.71 dBA
At Duty Cycle 50%: 37.5 dBA
At Duty Cycle 100%: 51.7 dBA
Air Pressure At Duty Cycle 20%: 2.083 mm-H2O
At Duty Cycle 50%: 9.780 mm-H2O
At Duty Cycle 100%: 36.168 mm-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
