Dynatron K2

£31.17

The Dynatron K2 is a solid little cooler that will make for an excellent small form factor server as long as some fan noise will not be a concern.

Out of stock

SKU: K2 Categories: , , ,

Description

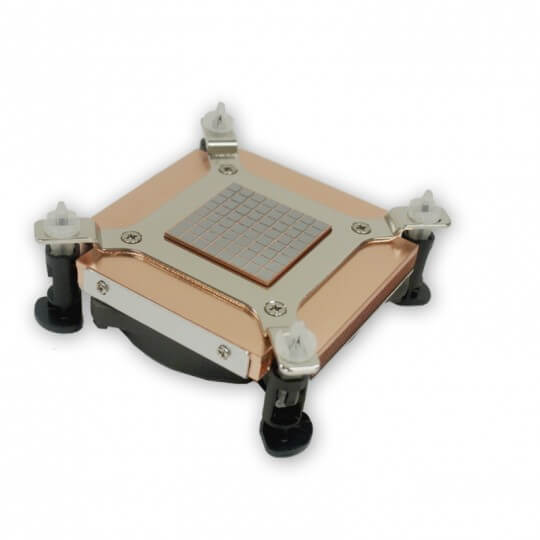

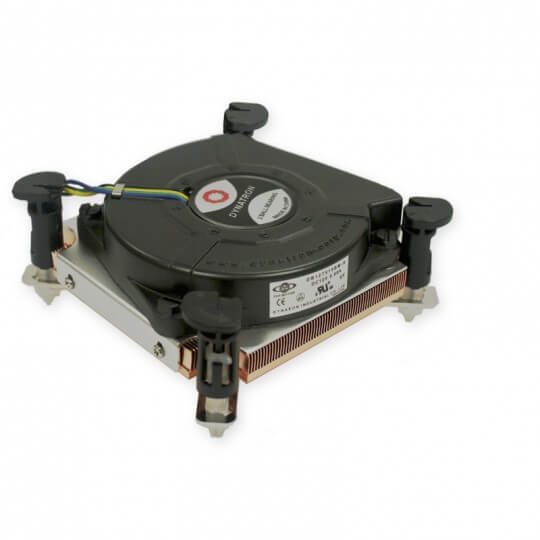

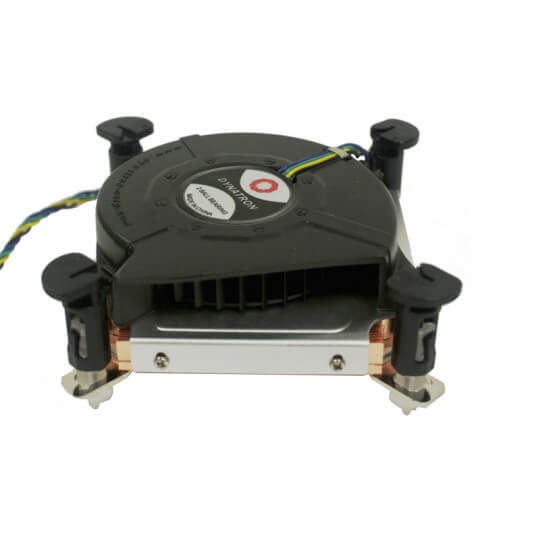

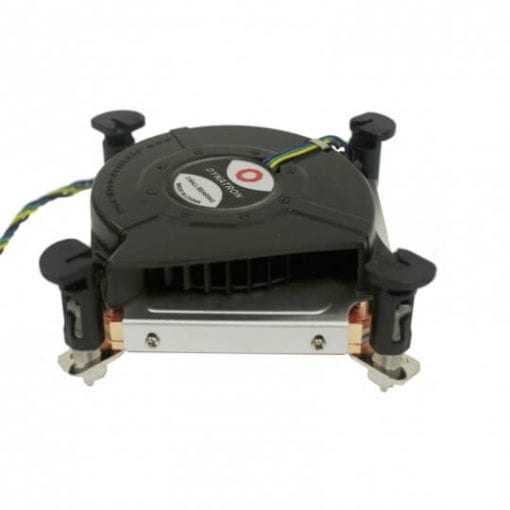

Aluminum 75 x 75 x 15 mm PWM blower with Copper heatsink push-pin mounting type for Mini-ITX form factor up to TDP 73 Watts.

73 Watts Aluminum 75x15mm
PWM Blower
LGA1151/1155/1156 Copper Skived Fin

Additional Information

CPU Support Intel
CPU Socket LGA1151 l LGA1155 l LGA1156
Solution mini-ITX
Dimensions 82.6 x 81.0 x 27.8 mm
Weight 380 g
Material Copper Heatsink
Fan Dimension 75 x 15 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 4000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 4.8 W
Air Flow At Duty Cycle 20%: 6.0 CFM
At Duty Cycle 50%: 8.3 CFM
At Duty Cycle 100%: 11.9 CFM
Noise Level At Duty Cycle 20%: 21.0 dBA
At Duty Cycle 50%: 37.8 dBA
At Duty Cycle 100%: 44.0 dBA
Air Pressure At Duty Cycle 20%: 0.087 inch-H2O
At Duty Cycle 50%: 0.453 inch-H2O
At Duty Cycle 100%: 0.929 inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
